IUPAC-NIST Solubility Database
NIST Standard Reference Database 106

---

 Solubility System: 3-Chlorophenol with Water

---

Components:
   (1) Water; H2O; [7732-18-5]  NIST Chemistry WebBook for detail
   (2) 3-Chlorophenol; C6H5ClO; [108-43-0]  NIST Chemistry WebBook for detail

Original Measurements:
   Sidwick, N.V.; Turner, S.L., J. Chem. Soc. 1922, 121, Part II, 2256-63.

Variables:
   Temperature = -17.0 °C - 130.8 °C

Prepared By:
   A. Vesala

Experimental Data:   (Notes on the Nomenclature)


t/°C	Molality mol1/kg	mol1/kg Note	10-2 * g1/kg	g1/kg Note	101 * Mole Fraction x1	x1 Note
-17.0	7.1743	b	9.223	a	6.2455	b
-13.2	7.1354	b	9.173	a	6.0852	b
-8.2	7.0093	b	9.011	a	5.6080	b
-4.8	6.8966	b	8.866	a	5.2282	b
-0.9	6.0617	b	8.487	a	4.4012	b
-0.18	.0568	b	0.073	a	0.0103	b
1.2	.09723	b	0.125	a	0.01771	b
2.5	.1439	b	0.185	a	0.02635	b
3.2	6.6017	b	8.487	a	4.4012	b
4.5	6.7822	b	8.719	a	4.8819	b
10.8	7.1742	b	9.223	a	6.2455	b
11.8	6.4485	b	8.290	a	4.0455	b
17.0	7.3975	b	9.510	a	7.3117	b
22.2	7.5538	b	9.711	a	8.2484	b
23.1	6.4018	b	8.230	a	3.9453	b
32.5	7.7787	b	10.00	a	10.0	b
85.25	0.3983	b	0.512	a	0.07506	b
109.8	5.5407	b	7.123	a	2.5759	b
118.0	0.86576	b	1.113	a	0.17248	b
123.0	1.0548	b	1.356	a	0.21511	b
127.5	1.3877	b	1.784	a	0.29531	b
129.1	4.3288	b	5.565	a	1.4955	b
130.5	3.5875	b	4.612	a	1.0711	b
130.7	3.0251	b	3.889	a	0.81882	b
130.8	2.4097	b	3.202	a	0.61922	b

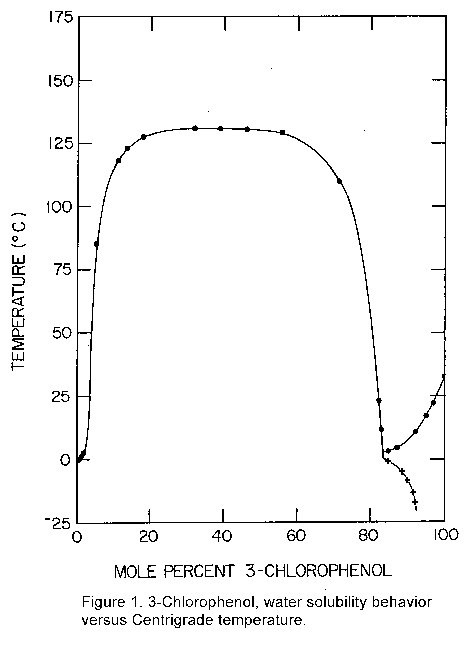

View Figure 1 for this Evaluation

Notes:
   ^a  Reported.
   ^b  Calculated by F. W. Getzen.

Method/Apparatus/Procedure:
   The solubility versus temperature measurements were made by the so called synthetic method which involved the mixing of known masses of solute and solvent and the testing of miscibility with temperature. A bracketing procedure was applied. In this method, two adjustable thermostats, one above and the other below the solubility temperature, were used. The contents of sample tubes in the two thermostat baths were observed to maintain one homogeneous and the other heterogeneous as the temperature interval between the two thermostats was reduced by successive steps.

Source and Purity of Materials:
   (1) Synthesized from 1-chloro-3-nitrobenzene by reduction and diazotisation. Melting point 32.5°C.
   (2) No specifications given.

Estimated Errors:

---
