Solubility System: cis-1,2-Dichloroethene (cis-1,2-dichloro-ethylene) with Water.

Components:
   (1) Water; H2O; [7732-18-5]  NIST Chemistry WebBook for detail
   (2) cis-1,2-Dichloroethene (cis-1,2-dichloro-ethylene); C2H2Cl2; [156-59-2]  NIST Chemistry WebBook for detail

Evaluator:
   A. L. Horvath, Imperial Chemical Industries Limited, Runcorn, U.K.

Critical Evaluation:

        The cis-1,2-dichloroethene (1) and water (2) binary system is treated in two parts; part 1 is cis-1,2-dichloroethene (1) in water (2) and part 2 is water (2) in cis-1,2-dichloroethene (1).
      Part 1. The solubility of cis-1,2-dichloroethene (1) in water (2) has been investigated by five groups of workers in the narrow temperature range from 283.15 to 313.15 K. The data of Howe et al.¹ are markedly lower than other results and are therefore rejected. The solubility determinations of Howe et al.¹ have been found to give lower values in general, as discussed in the critical evaluation of solubilities of CCl₃F, CCl₄, CHBr₂Cl, CHCl₃, and CH₂Cl₂ in water. Both the measured values of McGovern² and those of Sato and Nakijima³ are noticeably low and were not used for the smoothing equation.
     The combined data of Gossett⁴ and Wright et al.⁵ were correlated to obtain the following mass percent (1) equation:

Solubility [100 w₁] = 27.7353 – 0.178316 (T/K) + 2.93282 × 10^–4 (T/K)²,

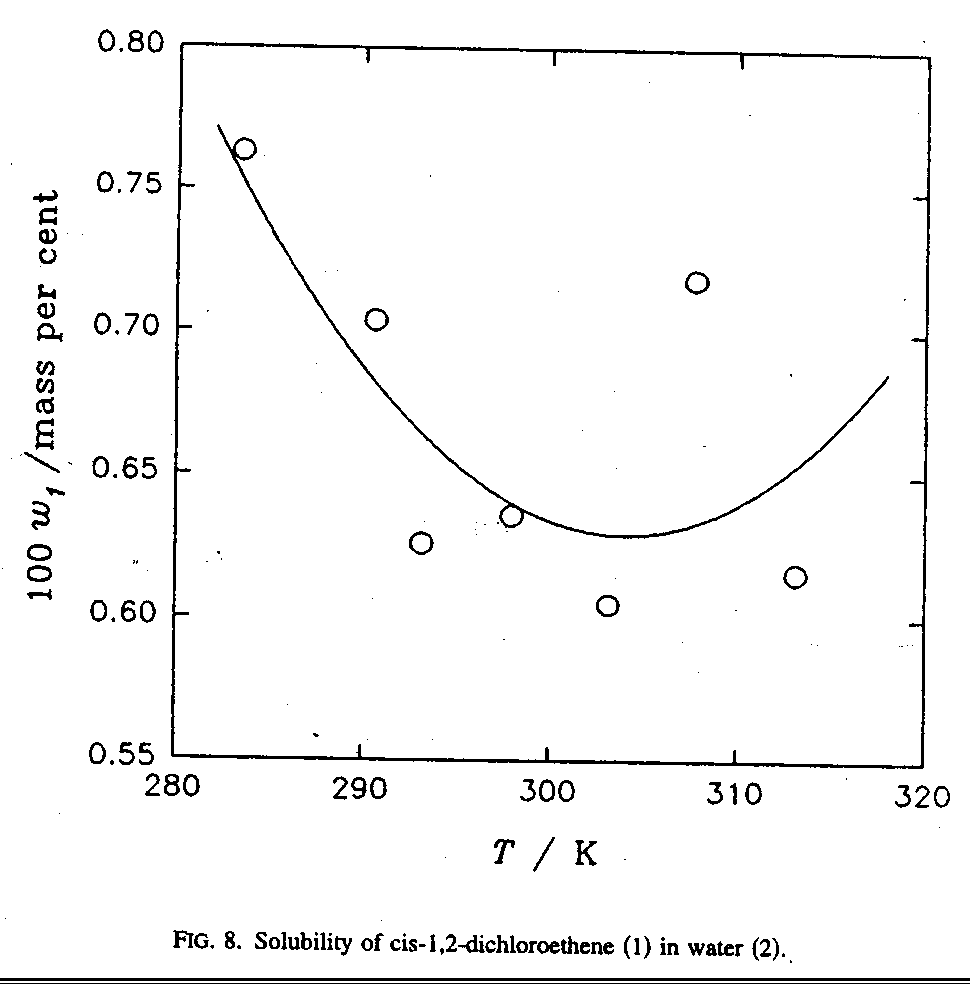

which yielded a standard deviation of 5.32 × 10^–2 in the temperature range from 283.15 to 313.15 K. The above equation represents the combined data with maximum deviation of 12 %, usually less, and may be considered tentative for solubility of cis-1,2-dichloroethene in water. The tentative values for this system are given in Table 1, as smoothed values at 5 K intervals. The curve obtained from the smoothing equation shows a distinct minimum at 304 K as shown in Fig. 8 which presents the data and calculated values versus temperature. The appearance of the solubility minimum is discussed in the Preface.
Part 2. The solubility of water (2) in cis-1,2-dichloroethene (1) has been studied by McGovern² and Ohtsuka and Kazama⁶ between 273.15 and 298.15 K. The solubility data of McGovern² are believed to be more reliable than that of Ohtsuka and Kazama⁶ because McGovern made measurements at more than one temperature. However, the datum at 298.15 K is a misprint, and it should be read as 0.055 [100 w₂]. These data are classified as tentative and are listed in Table 2.

Experimental Data: (Notes on the Nomenclature)

Table 1. Tentative solubility of cis-1,2-dichloroethene (1) in water (2)
t/°C	T/K	10² * Mass Fraction w₁	10³ * Mole Fraction x₁
10	283.15	0.755	1.41
15	288.15	0.705	1.32
20	293.15	0.667	1.25
25	298.15	0.641	1.20
30	303.15	0.631	1.18
35	308.15	0.636	1.19
40	313.15	0.656	1.23

Table 2. Tentative solubility of water (2) in cis-1,2-dichloroethene (1)
t/°C	T/K	10² * Mass Fraction w₁	10³ * Mole Fraction x₁
0	273.15	0.019	1.02
5	278.15	0.024	1.29
10	283.15	0.028	1.50
15	288.15	0.034	1.83
20	293.15	0.039	2.10
25	298.15	0.055	2.95

View Figure 1 for this Evaluation

References: (Click a link to see its experimental data associated with the reference)

   1  Howe, G.B.; Mullins, M.E.; Rogers, T.N., AFESC Tyndall Air Force Base, Report ESL-TR-86-66, Vol. 1, Florida, Sept. 1987, 86 pp. (AD-A188 571).
   2  McGovern, E.W., Ind. Eng. Chem. 1943, 35, 1230-9.
   3  Sato, A.; Nakijima, T., Arch. Envir. Health 1979, 34, 69-75.
   4  Gossett, J.M., Environ. Sci. Technol. 1987, 21, 202-8.
   5  Wright, D.A.; Sandler, S.I.; DeVoll, D., Environ. Sci. Technol. 1992, 26, 1828-31.
   6  Ohtsuka, K.; Kazama, K., Sen't Seihin Shohi Kagaku Kaishi 22, 197-201 (1982).
